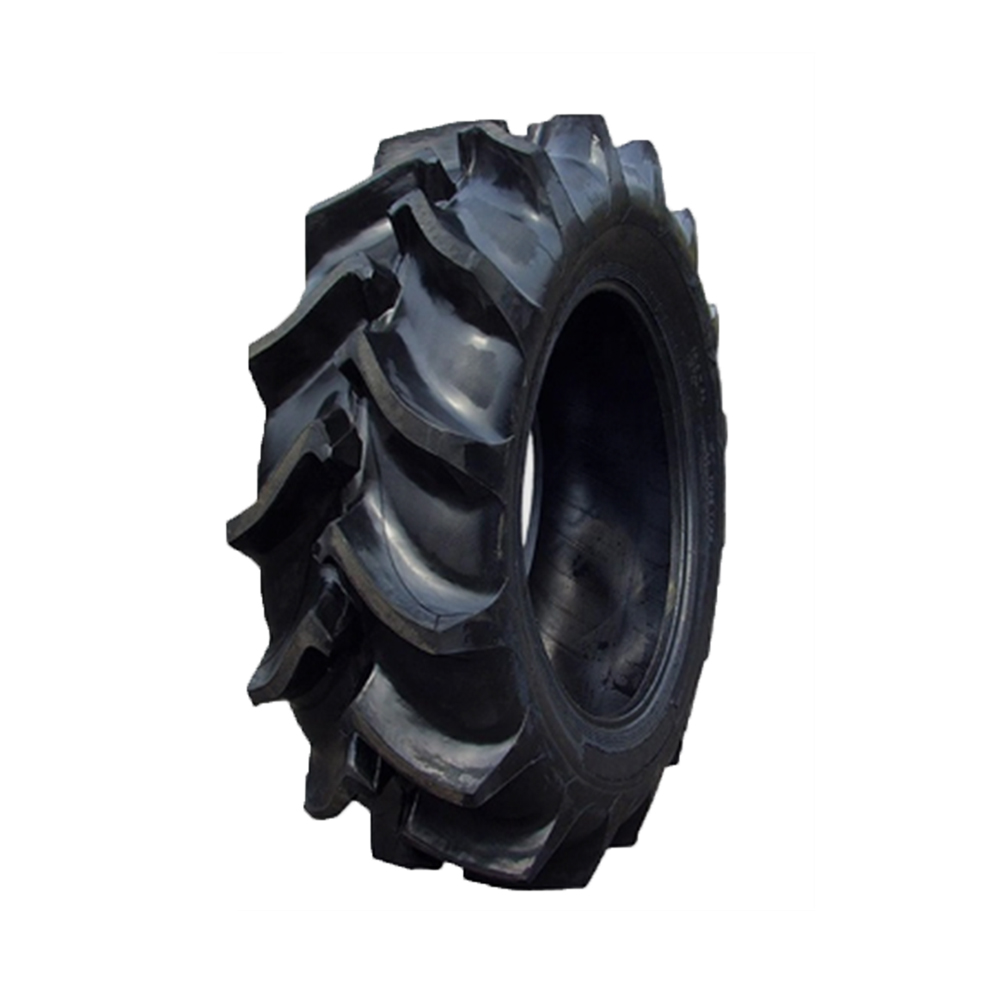

AG100 R-1W Radial Tractor Tires

Forlander AG100 R-1W radial tractor tire combines a high‑strength steel belt with an optimized tread design to deliver superior traction, durability, and reduced slippage across diverse farm operations. Its self‑cleaning grooves and wide footprint help minimize soil compaction and protect crop roots, making it an excellent radial tractor tyre choice. Tire sizes include 600 70r30 tire, among 47 sizes radial ag tires available for selection.

Categories Agricultural Tire, Radial Agricultural Tire

Additional information

Construction Type	Radial
Application	Tractor
Industry Code	R-1
Available Sizes	15R24, 260/70R16, 280/70R16, 280/70R18, 280/70R20, 280/85R20, 300/80R15.3, 320/70R20, 320/85R24, 340/85R24, 360/70R28, 380/70R24, 380/70R28, 380/85R24, 380/85R28, 380/85R30, 420/85R24, 420/85R28, 420/85R30, 420/85R34, 420/90R30, 440/80R28, 460/85R30, 460/85R38, 480/70R24, 480/80R38, 520/70R38, 520/85R38, 520/85R42, 540/65R28, 540/65R30, 580/70R42, 600/65R38, 600/70R28, 600/70R30, 620/75R26, 620/75R34, 650/65R38, 650/65R42, 650/85R38, 710/70R38, IF520/85R42, IF580/80R34, IF710/70R42, IF800/65R32 CFO, IF800/70R38, VF265/70R15.3

Share to...

AG100 R-1W Radial Tractor Tires

Table of Contents

Add a header to begin generating the table of contents

Product details

Features and Benefits — Forlander AG100 R-1W Radial Tractor Tyre

Superior Traction and Self‑Cleaning:

The Forlander AG100 R‑1W’s optimized tread with deep grooves and block patterns delivers strong grip in mud, loose soil, and challenging terrain while its self‑cleaning layout prevents mud buildup—ensuring the radial tractor tyre maintains consistent traction during field work.

Long‑Lasting, Even Wear:

A wear‑resistant tread pattern with evenly distributed blocks minimizes irregular wear and extends service life, making this radial ag tires choice cost‑effective over many seasons of heavy use.

Low‑Compaction Footprint and Enhanced Stability:

The wide, low‑compaction footprint reduces soil compaction to protect crop roots, while reinforced sidewalls and extended shoulder tread improve lateral stability for demanding operations—features that also make it an excellent radial tyre for tractor and agricultural radial tire option.

Datasheet

Serial No.	Series	Specification	Rim	Tread Pattern	Tread Depth (mm)	Section Width (mm)	Outer Diameter (mm)	Load Index	Speed Rating	Inflation Pressure (kPa)	Load Capacity (kg)
1	65	540/65R28	W18L	KT178	48	550	1413	142 145	D A8	160	2650
2		540/65R30	W18L	KT178	50	550	1464	143	D	160	2725
3		600/65R38	DW18A	KT178	50	601	1745	159	D	240	4375
4		650/65R38	DW20A	KT178	51	645	1811	157	A8 B	160	4125
5		650/65R42	DW20A	KT178	50	645	1913	165 168	D A8	240	5150
6		IF800/65R32 CFO	DW27B	KT178	58	798	1853	181	D	280	8250
7	70	260/70R16	W8	KT178	29	258	770	109	D	240	1030
8		☆VF265/70R15.3	9.00*15.3	KT178	24	265	760	124	A8 B	280	1600
9		280/70R16	W9	KT178	42	282	798	112	D A8	240	1120
10		280/70R18	W9	KT178	36	282	849	114 117	D A8	240	1180
11		280/70R20	W9	KT178	33	282	900	116	D	240	1250
12		320/70R20	W10	KT178	39	319	982	130 133	D A8	320	1900
13		15R24	DW14L	KT178	30	410	1330	148	A8 B	330	3150
14		380/70R24	W12	KT178	42	380	1190	125 130	A8/B A8/D	160 240	1650 1900
15		480/70R24	W15L	KT178	45	479	1316	155 158	D A8	420	3875
16		360/70R28	W11	KT178	41	357	1251	125 130	A8 D	240	1900
17		380/70R28	W12	KT178	42	380	1293	127	D	160	1750
18		600/70R28	DW18L	KT178	50	601	1551	157	A8 B	240	4125
19		600/70R30	DW18L	KT178	51	591	1602	158	A8 B	240	4250
20		520/70R38	DW16L	KT178	49	516	1749	150	D	160	3350
21		710/70R38	DW23A	KT178	51	716	1959	171	A8 B	240	6150
22		IF800/70R38	DW27B	KT178	62	804	2085	184	D	240	9000
23		580/70R42	DW18L	KT178	52	577	1879	158	A8 B	160	4250
24		IF710/70R42	DW25B	KT178	52	705	2061	179	A8 B	240	7750
25	75	620/75R26	DW20B	KT178	53	625	1590	166	D	320	5300
26	75	620/75R34	DW20B	KT178	51	625	1794	170	A8 B	320	6420
1	80	300/80R15.3	W9	KT178	26.5	295	869	129 141	A8 B	400	1850
2		440/80R28	DW14L	KT178	45	441	1415	156	A8 B	320	4000
3		480/80R38	W15	KT178	50	479	1733	151	A8 B	200	3450
4		IF580/80R34	DW20B	KT178	53	576	1792	177	A8 B	360	7300
5	85	280/85R20	W9	KT178	40	282	984	112	A8 B	160	1120
6		320/85R24	W10	KT178	42	319	1154	161 164	B A8	160	1500
7		340/85R24	W11	KT178	41	343	1188	125 122	A8 B	160	1650
8		380/85R24	W12	KT178	44	380	1256	131	A8 B	160	1950
9		380/85R28	W12	KT178	46	380	1357	133	A8 B	160	2060
10		380/85R30	W12	KT178	42	380	1408	135	A8 B	160	2180
11		420/85R24	W15L	KT178	48	418	1324	137	D	160	2300
12		420/85R28	W13	KT178	45	418	1425	139	A8 B	160	2430
13		420/85R30	W15L	KT178	46	418	1476	140	D A8	160	2500
14		420/85R34	W15L	KT178	48	418	1578	147	A8 B	240	3075
15		460/85R30	DW15L	KT178	48	455	1544	154	A8	240	3750
16		460/85R38	W14L	KT178	48	455	1747	149	A8 B	160	3250
17		520/85R38	DW16L	KT178	51	516	1849	155	A8 B	160	3875
18		520/85R42	DW16L	KT178	54	516	1951	162	A8 B	240	4750
19		IF520/85R42	DW18L	KT178	53	526	1951	169	A8 B	240	5800
20		650/85R38	DW20B	KT178	56	645	2071	173	D A8	240	6500
21	90	420/90R30	DW13	KT178	45	418	1518	143 147	D A8	240	3075
