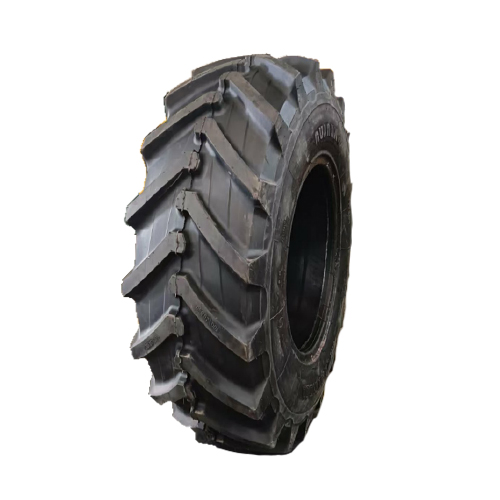

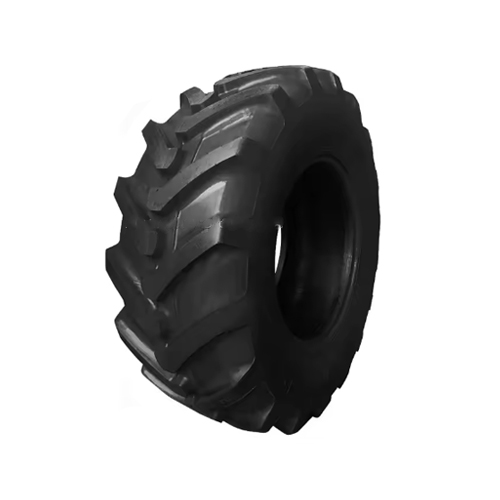

AG500 R-4 Radial Tractor Tires

Forlander AG500 R-4 radial tractor are engineered for harvesting equipment, featuring a 45° lug profile that delivers superior traction while reducing roading vibration for smoother transport. Their large‑volume, low‑pressure design with an extended footprint minimizes soil compaction and improves flotation during field operations, making the AG500 an excellent R4 tractor tire. AG500 R4 tire sizes include 440 80r24, 500 70r24, 480 80R26, among 19 other sizes available for selection.

Categories Agricultural Tire, Radial Agricultural Tire

Additional information

Construction Type	Radial
Application	Tractor
Industry Code	R-4
Available Sizes	280/80R20, 340/80R18, 340/80R20, 360/70R24, 400/60R20, 400/70R20, 400/70R24, 440/80R24, 440/80R28, 460/70R24, 480/70R34, 480/80R26, 500/70R24, 540/70R24, 650/75R32

Share to...

AG500 R-4 Radial Tractor Tires

Table of Contents

Add a header to begin generating the table of contents

Product details

Features and Benefits — Forlander AG500 R-4 Radial Tractor Tires

45° Premium Lug Profile:

The Forlander specially angled tread blocks deliver maximum field traction while reducing on‑road vibration, making this model an excellent R4 tire for both work and transport.

Extended Lug Footprint:

A wider tread contact patch distributes weight evenly to minimize soil compaction and protect crop roots, a key benefit of the R4 tractor tire design.

Dual‑Phase Tread:

Open‑center lugs provide effective self‑cleaning and deep‑lug grip in the field, while closed shoulder patterns maintain stability and handling on roads.

Datasheet

SIZE	LOAD INDEX	PATTERN CODE	STANDARO RIM	TREAD DEPTH MM	OVERALL DIAMETER MM	SECTION WIDTH MM	RELEVANT PRESSURE KPA	MAX LOADING KG
280/80R20	133 A8	R-4	W9	26	956	282	400	2060
340/80R18	143 A8	R-4	W11	30	1001	343	400	2725
340/80R20	144 A8	R-4	W11	30	1052	343	400	2800
360/70R24	136 A8	R-4	W11	35	1152	357	340	2240
400/60R20	148 A8	R-4	DW13L	30	980	390	480	3150
400/70R20	149 A8	R-4	DW13L	30.5	1068	404	400	3250
400/70R24	152 A8	R-4	DW13L	32	1170	404	400	3550
440/80R24	161 A8	R-4	DW14L	36	1314	441	400	4625
440/80R28	163 A8	R-4	DW14L	36	1415	441	400	4875
460/70R24	159 A8	R-4	DW14L	36	1254	455	400	4375
480/70R34	159 A8	R-4	DW15L	41	1580	479	380	4375
480/80R26	160 A8	R-4	DW15L	36	1428	479	320	4500
480/80R26	167 A8	R-4	DW15L	36	1428	479	400	5450
480/80R26	173 A8	R-4	DW15L	36	1428	479	500	6500
480/80R26	179 A8	R-4	DW15L	36	1428	479	600	7750
500/70R24	164 A8	R-4	DW16L	38	1310	503	400	5000
540/70R24	161 A8	R-4	DW16L	39	1366	540	320	4625
650/75R32	172 A8	R-4	DW20B	48	1789	645	320	6300
650/75R32	178 A8	R-4	DW20B	48	1789	645	400	7500
